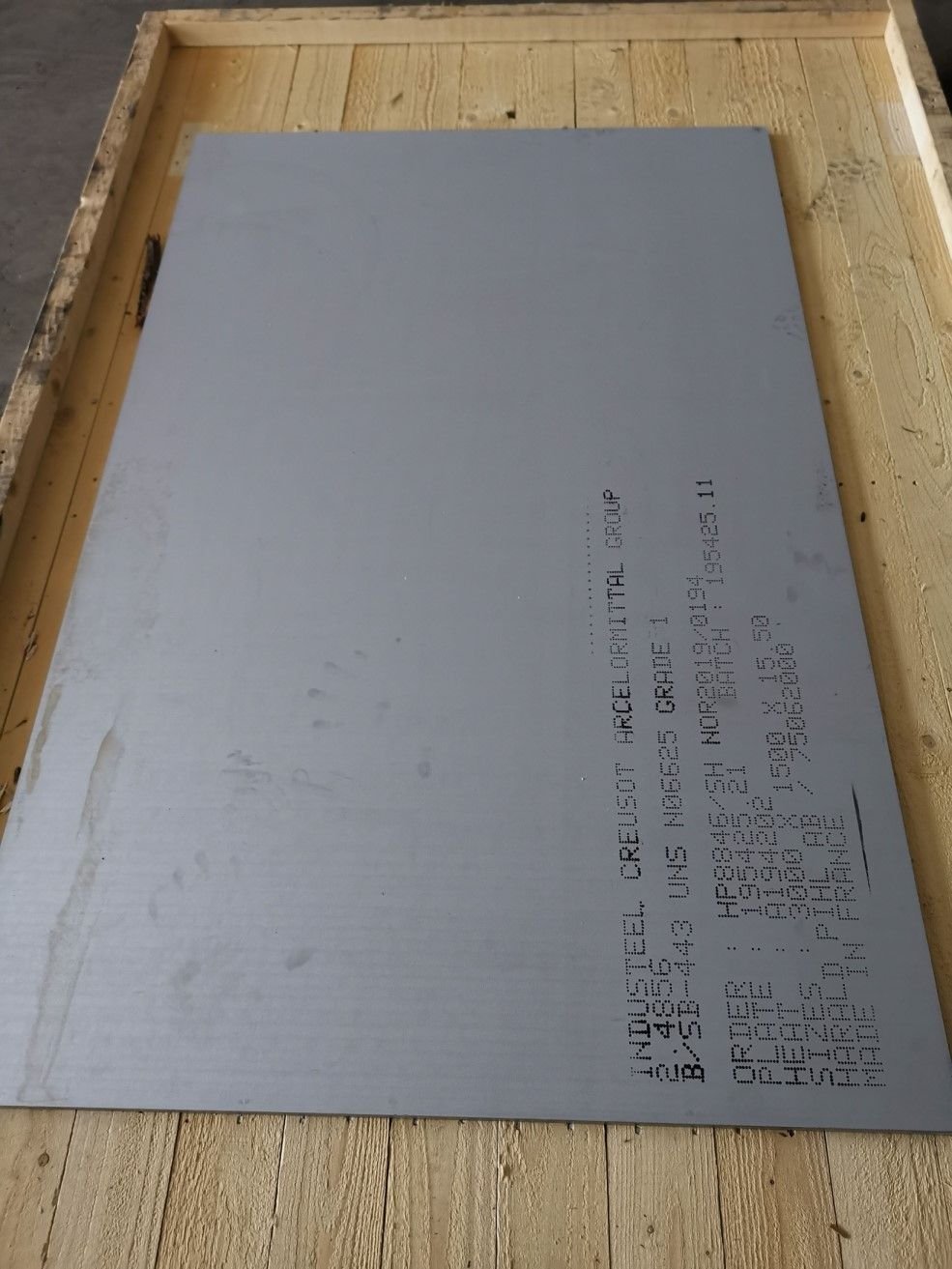

VDM Sheet Metals Specification
| VDM Trade Designation | Welding Consumable | Alternative Designation | UNS | DIN EN |
|---|---|---|---|---|
| VDM® Alloy 625 | VDM® FM 625 | Nicrofer 6020 hMo | N06625 | 2.4856 |
| VDM® Alloy C-276 | VDM® FM 59 VDM® FM 622 VDM® FM C-276 |
Nicrofer 5716 hMo W | N10276 | 2.4819 |
| VDM® Alloy 22 | VDM® FM 59 VDM® FM 622 |
Nicrofer 5621 hMo W | N06022 | 2.4602 |
| VDM® Alloy 825 CTP | VDM® FM 625 VDM® FM CTP |
- | N08827 | 2.4861 |
| VDM® Nickel 200 | VDM® FM 61 | Ni99,2 | N02200 | 2.4060, 2.4066 |
| VDM® Alloy 800 | VDM® FM 82; VDM® FM 625 |
Nicrofer 3220 | N08800 | 1.4876 |
| VDM® Nickel 205 | VDM® FM 61 | LC-Ni99,6 | N02205 | 2.4061 |
| VDM® Nickel 201 | VDM® FM 61 | LC-Ni99,2 | N02201 | 2.4061, 2.4068 |
| VDM® Alloy 400 | VDM® FM 60 | Nicorros | N04400 | 2.4360 |
| VDM® Alloy N10675 | - | - | N10675 | 2.4600 |
| VDM® Alloy 926 | VDM® FM 625 VDM® FM 59 |
Cronifer 1925 hMo | N08926 | 1.4529 |
| VDM® Alloy 825 | VDM® FM 65 Ni VDM® FM 65 Mn VDM® FM 625 |
Nicrofer 4221 | N08825 | 2.4858 |
| VDM® Alloy K-500 | VDM® FM 60 |
Nicorros Al | N05500 | 2.4375 |
| VDM® Alloy 28 | VDM® FM 31 | Nicrofer 3127 LC | N08028 | 1.4563 |
| VDM® Alloy 20 | VDM® FM 625 | Nicrofer 3620 Nb | N08020 | 2.4660 |
| VDM® Alloy 33 | VDM® FM 33 | Nicrofer 3033 | R20033 | 1.4591 |
| VDM® Alloy 405 | - | Nicorros HS | N04405 | 2.4360 |
| VDM® Alloy 400 L | - | Nicorros LC | N04402 | 2.4361 |
| VDM® Alloy G-3 | - | Nicrofer 4823 hMo | 2.4619 | |
| VDM® Alloy 690 | VDM® FM 52i | Nicrofer 6030 | N06690 | 2.4642 |
| VDM® Alloy 600 L | - | Nicrofer 7216 LC | N06600 | 2.4817 |
| VDM® Alloy C-4 | VDM® FM 622 VDM® FM 59 VDM® FM C-4 |
Nicrofer 6616 hMo | N06455 | 2.4610 |
| VDM® Alloy B-2 | VDM® FM B-2 | Nimofer 6928 | N10665 | 2.4617 |
| VDM® Nickel 233 | - | Ni99,6 K | N02233 | 2.4060 |
| Delivery condition | Width mm (inches) | Thickness mm (inches) | Length mm (inches) |
|---|---|---|---|
| Hot rolled | <2,500²) <98.4²) | (0.12-3.93) 3-100 | 12,000³) (472.4)³) |
| Cold rolled | 1.000-2,400¹) (39.37-94.5)¹) | 1-8 (0.04-0.31) | 12,000³) (472.4)³) |
| Thickness mm (inches) | Width mm (inches) | ||
|---|---|---|---|
| > | ≤ | min. | max. |
| 0.10 (0.0039) | 0.20 (0.0079) | 4 (0.16) | 350/7302) (13.78/28.7)2) |
| 2.00 (0.0787) | 3.502) (0.1378)2) | 25 (0.98) | 750 (29.53) |
| 0.20 (0.0079) | 0.25 0.0098) | 4 (0.16) | 750 (29.53) |
| 0.25 (0.0098) | 0.60 (0.024) | 6 (0.24) | 750 (29.53) |
| 1.00 (0.0394) | 2.00 (0.0787) | 15 (0.59) | 750 (29.53) |
| 2.00 (0.0787) | 3.001) (0.1181)1) | 25 (0.98) | 750 (29.53) |
| 0.02 (0.0008) | 0.10 (0.0039) | 4 (0.16) | 200/7302) (7.87/28.7)2) |
| 0.60 (0.024) | 1.00 (0.0394) | 8 (0.32) | 750 (29.53) |
| Tool/type | Width max. mm (inches) | Thickness max. mm (inches) | Length max. mm (inches) |
|---|---|---|---|
| Plasma cutting | (137.8) 3.500 | (3.15) 80 | (630) 16.000 |
| Scissors | (204.72) 5.200 | (0.71-0.79) 18-20 | (315) 8.000 |
| sawn | (236.2) 6.000 | (5.51) 140 | (236.22) 6.000 |
