Blossom Steel & Engineering Co. supplies Hastelloy Pipe Fittings in India and Mumbai for chemical processing, oil & gas, petrochemical, pharmaceutical, power and other demanding industrial piping applications.
Our Hastelloy fittings are available in a wide range of sizes, schedules, bending radii and configurations as per ASTM B366 / ASME SB366 and applicable dimensional standards. We support standard as well as project-specific requirements with material certification and inspection documentation.
| Specification | Details |
|---|---|
| Product Specification | ASTM B366 / ASME SB366 |
| Dimensions | ANSI B16.9, B16.25, B16.28, MSS-SP-43, MSS-SP-48, MSS-SP-59 |
| Size Range | 1/8″ NB to 48″ NB |
| Schedule / Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Bending Radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D, Custom |
| NACE Requirement | Available with NACE MR 01-75 |
| Test Certificates |
EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |

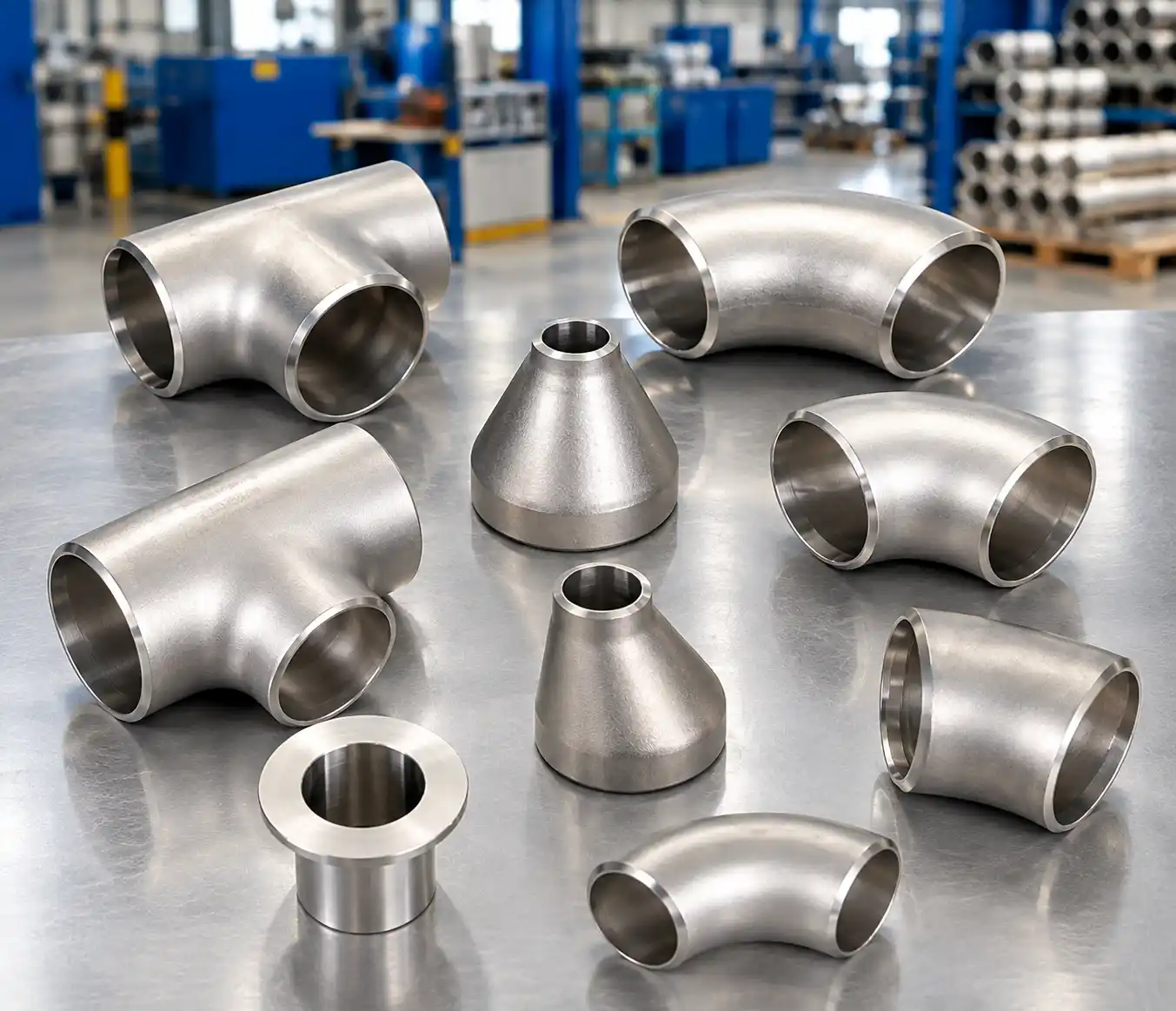

Blossom supplies Hastelloy pipe fittings in different configurations for connecting, redirecting, branching and changing the size of piping systems.
Hastelloy elbows are used to change the direction of piping while maintaining the required flow path. Depending on the piping design, different bending radii can be supplied.
Available requirements include:
Bending radii can include 1D, 2D, 3D, 5D, 6D, 8D and 10D, as well as custom requirements.

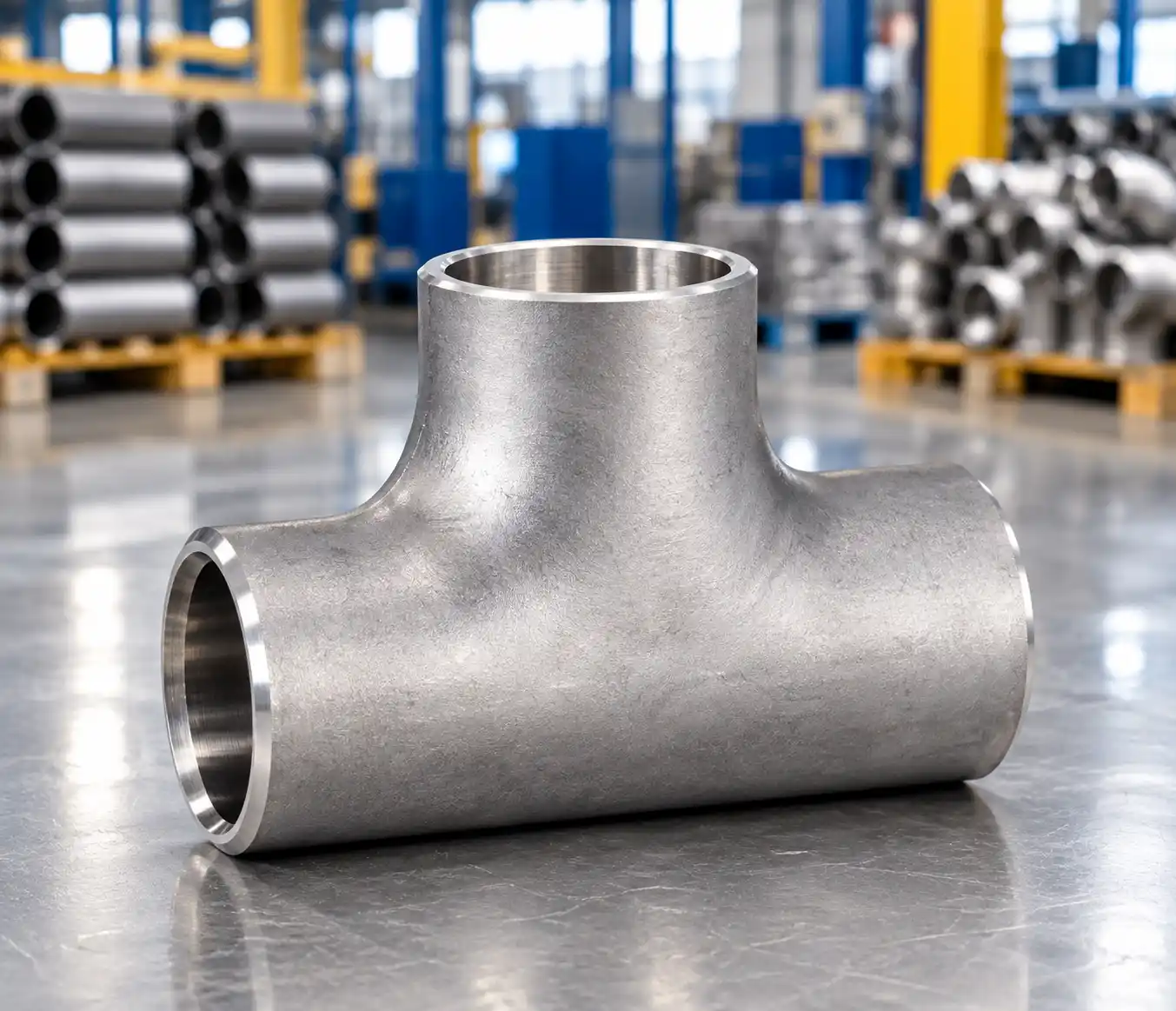

Hastelloy tees and crosses are used for branching process and piping lines.
Available configurations include:

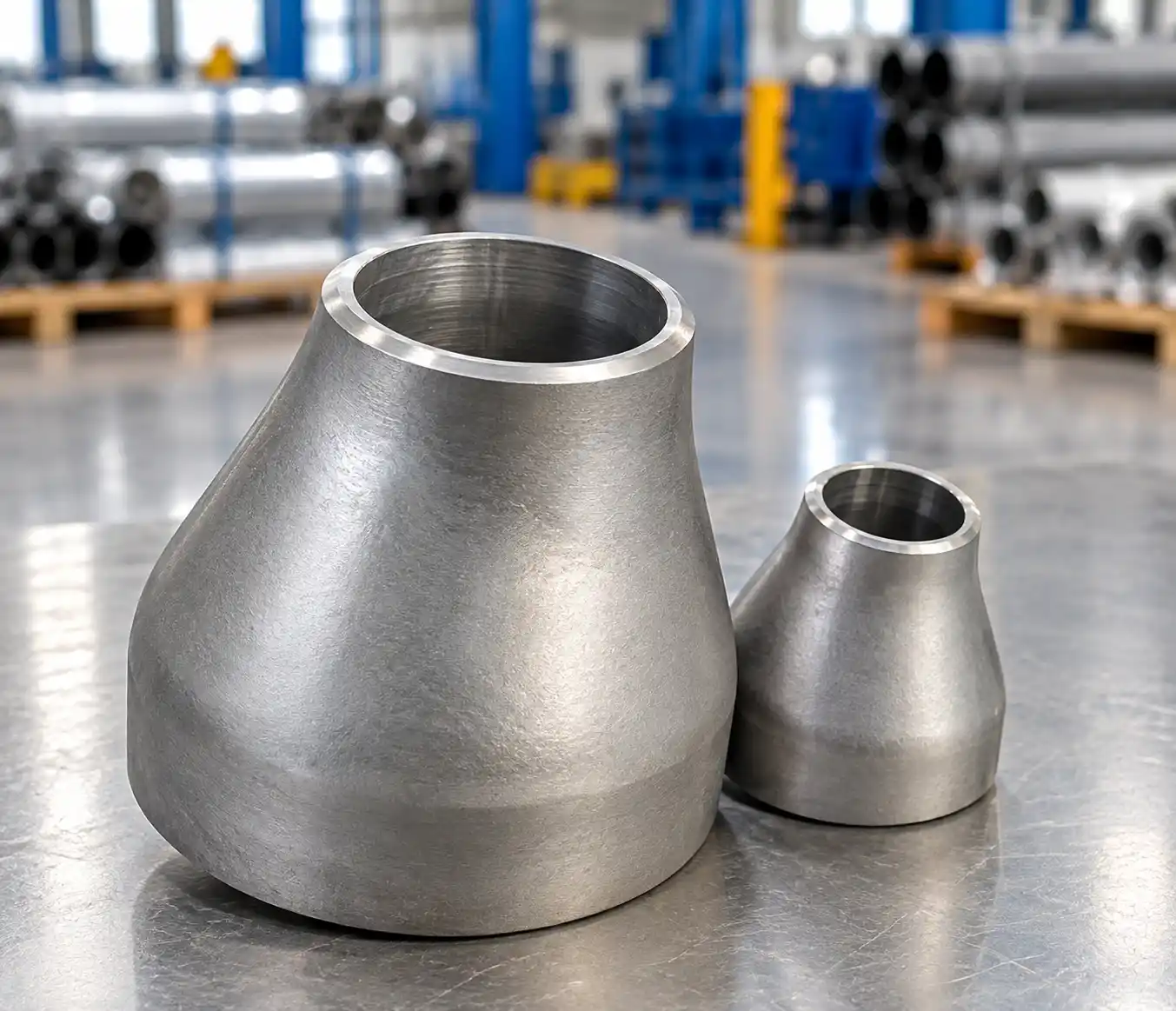

Reducers connect pipes with different nominal bore sizes while providing a controlled transition between the two lines.
Common configurations include:
Depending on the piping requirement, the product range can include:
The fitting configuration, dimensions and applicable standard can be specified according to the piping requirement.
Hastelloy pipe fittings are available in different nickel-based alloy grades according to the required material specification and service conditions.
Hastelloy C276 is one of the most widely specified Hastelloy grades for demanding industrial environments.
The grade is identified by:
Hastelloy C276 fittings can be supplied in the required size, schedule, fitting configuration and dimensional standard.
Hastelloy C22 is a nickel-chromium-molybdenum alloy used for demanding process applications.
The grade is identified by:
Depending on the specification and requirement, Hastelloy fittings can also be supplied in grades such as:
Customers can provide the required grade, standard or UNS designation when requesting a quotation.
Blossom supplies Hastelloy pipe fittings from 1/8″ NB to 48″ NB, covering small-bore piping through large-diameter industrial requirements.
| Dimension | Available Options |
|---|---|
| Nominal Bore | 1/8″ NB to 48″ NB |
| Schedules | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Bending Radius | 1D, 2D, 3D, 5D, 6D, 8D, 10D, Custom |
| Dimensional Standards | ANSI B16.9, B16.25, B16.28, MSS-SP-43, MSS-SP-48, MSS-SP-59 |
| NACE Requirement | Available with NACE MR 01-75 |
Custom dimensional requirements can be reviewed based on the required nominal bore, fitting type, wall thickness, schedule and bending radius.
Hastelloy buttweld fittings provide welded connections between piping components and are available for different process piping configurations.
Common fitting types include:
Buttweld fittings can be supplied according to applicable ASTM B366 / ASME SB366 requirements and dimensional standards.

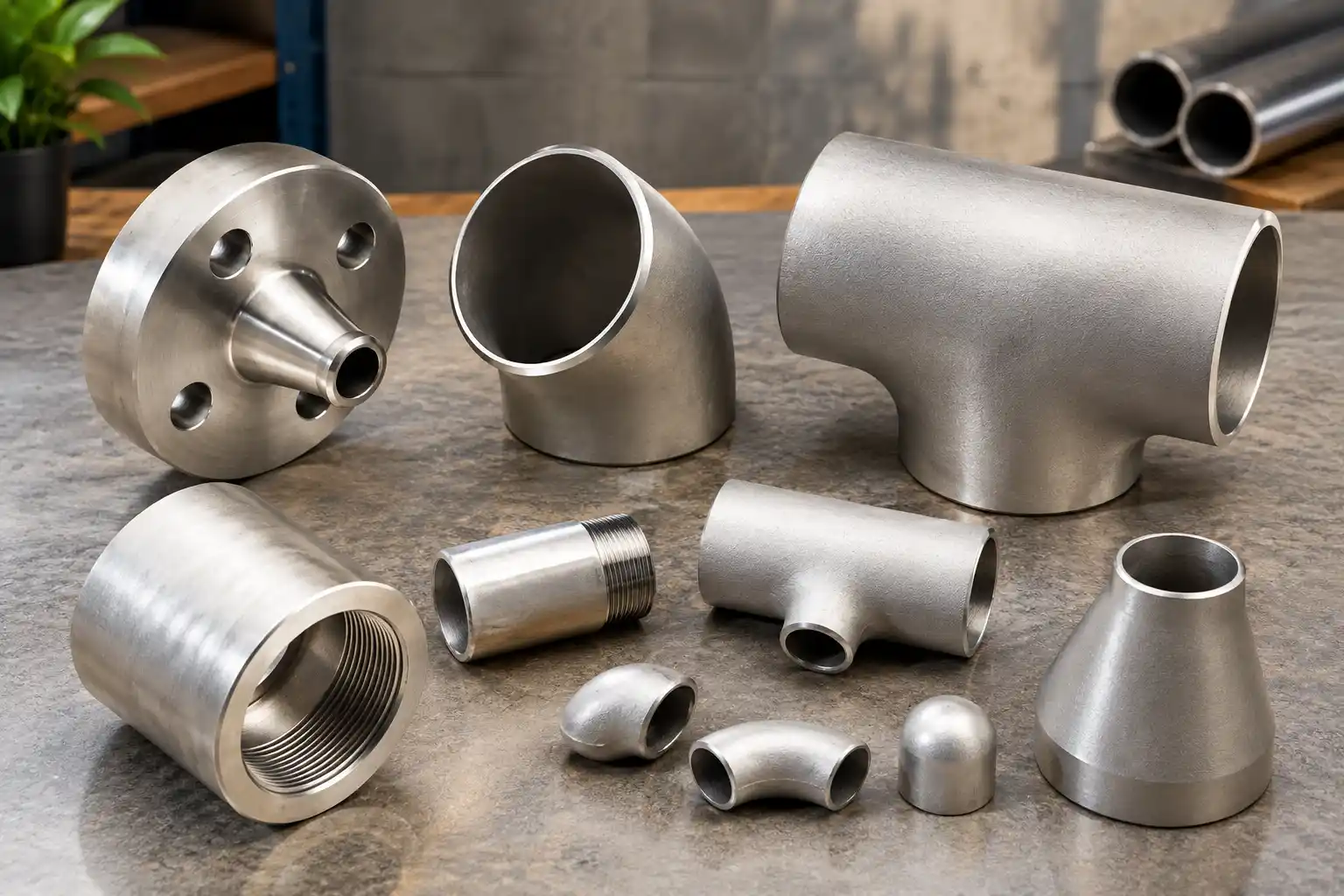

For applications requiring compact connection arrangements, forged fitting configurations can be specified according to the applicable requirement.
Common forged fitting entities include:
The applicable material, pressure class, size and dimensional standard should be specified when requesting forged Hastelloy fittings.
Blossom supplies Hastelloy pipe fittings according to the specified material and dimensional requirements.
| Standard | Application / Reference |
|---|---|
| ASTM B366 / ASME SB366 | Hastelloy pipe fittings specification |
| ANSI B16.9 | Factory-made wrought buttwelding fittings |
| ANSI B16.25 | Buttwelding ends |
| ANSI B16.28 | Wrought steel buttwelding short-radius elbows and returns |
| MSS-SP-43 | Wrought stainless steel buttwelding fittings |
| MSS-SP-48 | Fittings and related dimensional requirements |
| MSS-SP-59 | Fittings and related dimensional requirements |
| NACE MR 01-75 | Available for specified requirements |
The applicable standard depends on the fitting type, material grade, dimensions and project specification.
Chemical composition varies according to the selected Hastelloy grade. C276 and C22 are among the principal grades used for Hastelloy piping components.
| Alloy | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C276 | Balance | 0.010 Max | 15.00–17.00 | 1.00 Max | 0.08 Max | 4.00–7.00 | 0.04 Max | 0.03 Max | 2.5 Max | 14.50–16.50 |
| Hastelloy C22 | Balance | 0.010 Max | 12.5–14.5 | 0.50 Max | 0.08 Max | 2–6 | 0.02 Max | 0.02 Max | 2.5 Max | 20–22 |
Chemical composition can be checked against the applicable material specification and certification supplied with the order.
The available mechanical and physical property data for the principal Hastelloy grades include:
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| C22 | 8.69 g/cm³ | 1399°C (2550°F) | 100,000 psi / 690 MPa | 45,000 psi / 310 MPa | 45% |
| C276 | 8.89 g/cm³ | 1370°C (2500°F) | 115,000 psi / 790 MPa | 52,000 psi / 355 MPa | 40% |
| B2 | 8.89 g/cm³ | 1370°C (2500°F) | 115,000 psi / 790 MPa | 52,000 psi / 355 MPa | 40% |
| B3 | 9.2 g/cm³ | 1370°C (2550°F) | 115,000 psi / 760 MPa | 52,000 psi / 350 MPa | 40% |
| X | 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35% |
The applicable properties depend on the grade, product form, dimensions and material specification.
International equivalent designations help engineering and procurement teams identify the required material across different specifications.
| Grade | UNS | Werkstoff No. | EN | JIS | GOST |
|---|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 | – |
| Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ |
When placing an enquiry, buyers can provide the Hastelloy grade, UNS number, Werkstoff designation or applicable material standard to help identify the required fitting.
Blossom can supply Hastelloy pipe fittings with material and inspection documentation required for industrial and project procurement.
Available certification and inspection documentation includes:
Inspection requirements can be specified at the enquiry stage according to the project or purchase specification.
Hastelloy fittings are used in piping and process systems where the selected alloy and fitting configuration need to meet demanding operating conditions.
Typical applications include:
The appropriate grade and fitting specification should be selected according to the process medium, temperature, pressure and operating conditions.
Blossom supports Hastelloy fitting requirements for standard procurement as well as project-specific applications.
Supply can be arranged according to:
We also support requirements involving large-diameter Hastelloy fittings, custom bending radii, special dimensions and project-specific inspection documentation.
For an accurate quotation, provide the fitting drawing or specification wherever custom dimensions are required.
Blossom Steel & Engineering Co. supplies Hastelloy Pipe Fittings across India for industrial, project, OEM and procurement requirements.
Customers can enquire for C276, C22 and other Hastelloy grades in the required fitting configuration, size, schedule and dimensional standard.
For faster quotation, provide:
Blossom supplies Hastelloy Pipe Fittings in Mumbai for chemical, petrochemical, engineering, process, oil & gas and other industrial requirements.
Fittings can be supplied according to the required grade, size, schedule, bending radius, dimensional standard and inspection documentation.
For project or procurement requirements, customers can share their specification, drawing or material requirement for quotation.
As a Hastelloy Pipe Fitting Stockist in Mumbai, Blossom supports requirements for standard and special Hastelloy fittings in different sizes, schedules and configurations.
Requirements can include C276, C22 and other specified Hastelloy grades, with applicable certification and inspection documentation.
Share the required fitting type, grade, size, schedule, quantity and delivery requirement to check the available supply option.
Looking for Hastelloy Pipe Fitting Suppliers in India or Mumbai?
Send your grade, fitting type, size, schedule/thickness, applicable standard, quantity and delivery location. For custom fittings, you can also provide the required drawing or dimensional specification.
